F INDUSTRIAL VIDEO ENDOSCOPE
Full HD Display for Precise Inspections
The new F video endoscope combines razor-sharp images with intuitive operation. The freely positionable 8-inch Full HD touchscreen enables safe and comfortable image evaluation. Thanks to the intuitive joystick control and individually assignable buttons, the probe can be easily and precisely navigated with one hand.
The uncomplicated probe change and a wide range of probes with diameters from 0.75 to 8.4 mm and different lengths allow the F to be optimally adapted to a wide variety of inspection tasks. A probe with stereo 3D measurement capability also expands the system with 3D point cloud measurements using various measurement methods.
Lightweight joystick
probe control
Individually assignable buttons and precise joystick control enable one-handed operation.

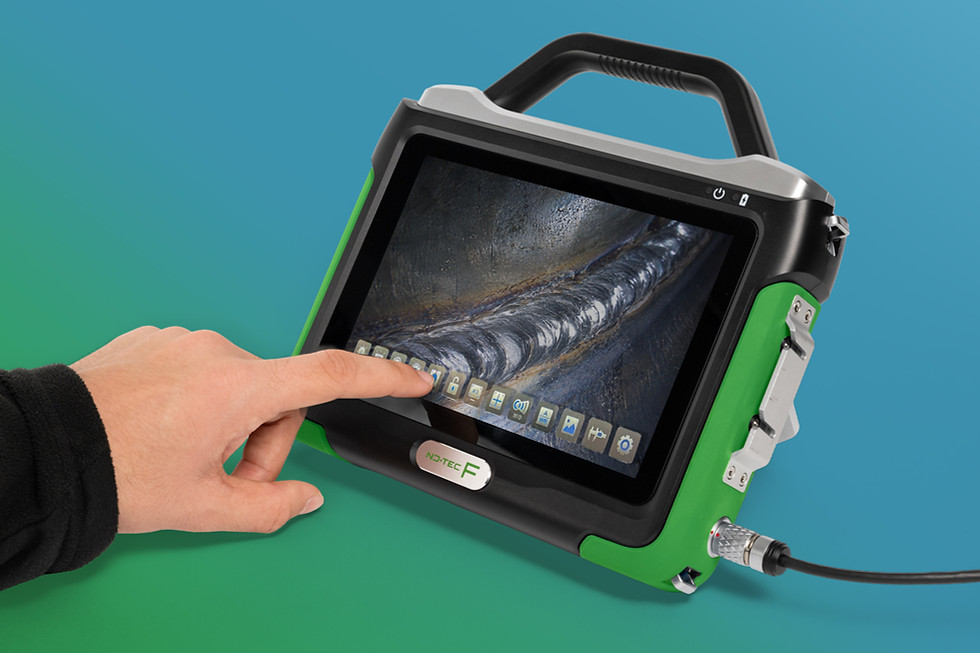

Full HD 8” touch display
The large 8-inch Full HD touchscreen provides safe and intuitive operation. Thanks to the razor-sharp, high-resolution image display, even the finest cracks and minor surface defects can be detected. The lightweight handpiece enables easy and precise control in all directions, allowing you to navigate complex component geometries without losing control of the probe position.
If no suitable surface is available for placing the unit, the monitor can be easily mounted using the supplied hook or an arm attached to the tripod thread on the rear.
3D Stereo Measurement
Equipped with a powerful NPU chip for AI-powered processing, the F generates a 3D point cloud with the appropriate probe for precise measurements. The intuitively designed user interface enables quick and easy operation. Measurement functions such as length, depth, area and multipoint measurements can be performed reliably.
Flexible Connectivity Options
The side of the housing features a Mini HDMI port, a USB 2.0 host port (Type-A), a USB Type-C port and a headset jack. These interfaces provide flexible connectivity for external devices and accessories.
Among the protected ports, the USB Type-C port marked “DC” is used to connect the power adapter for charging the lithium-ion batteries and for operating the device from an external power source.
USB-C Connectivity
Just like for charging the battery, a cable with a high-performance USB-C connection is used to connect the probe to the monitor, ensuring reliable image transmission.
